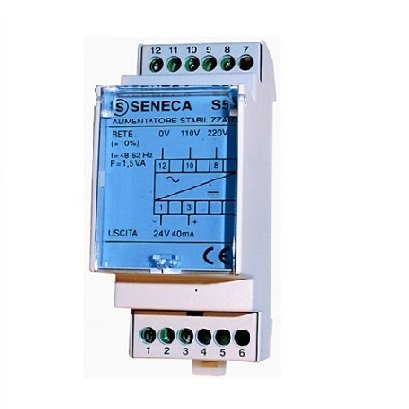

Current Loop Power Supply S50

Stabilized power supply with 115 / 230 Vac mains input and 24 Vdc 40 mA output. Used industrially to power instruments in 4-20 mA current loop or to power from the mains instruments that require 24 Vdc stabilized voltage.

Talk to Our Experts Download Datasheet

  • The input is protected against line overvoltages by means of a varistor.
  • The insulation between the mains and low voltage circuits is 4500 Vac.
  • The output is self-protected against short circuits.

  • The self-extinguishing Noryl case is the width of 2 DIN modules and is designed to fit on 35 mm mounting rail (DIN 46277).
  • The input is protected against line overvoltages by means of a varistor.
  • The insulation between the mains and low voltage circuits is 4500 Vac.
  • The output is self-protected against short circuits.

  • Power supply : 115 / 230 Vac +/- 10% 50 / 60 Hz
  • Power consumption : 7,5 VA
  • Outputs : + 15 Vdc 350 mA and - 15 Vdc 75 mA
  • Operating temp. : - 10 / + 60 °C
