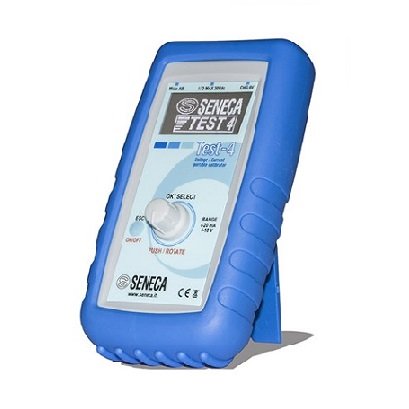

Simulator/Meter TEST-4

Test-4 is a reliable support for calibration sessions, laboratory tests and of analog measurements simulation controlled by industrial devices (controllers, DAQ systems etc.). With a total accuracy better than 0.1%, and a whole resolution of 1 μA / 1 mV, Test-4 achieve accurate calibration results. It allows the simulation of ramps in both tension and current value (active or passive). Test-4 is supplied by 220 Vac power network with external AC/DC adapter or by 2 NiMH batteries providing approximately 20 hours of run time.

  • Ramp Generator on Up/ Down Signals
  • Input / Output 0..21mA 0..11V
  • Low Consuption OLED Display
  • Multifunction Encoder Button

  • Multifunction Encoder Button
  • Anti-slip Cover
  • Accuracy 0.1%
  • Rechargeable Batteries
  • Multi Language Display

  • Protection degree : IP 20
  • Operating temp : 0..50°C (recommended))
  • Humidity : 30..90 % non-condensing
  • Dimensions : 140 x 75 x 33 mm
