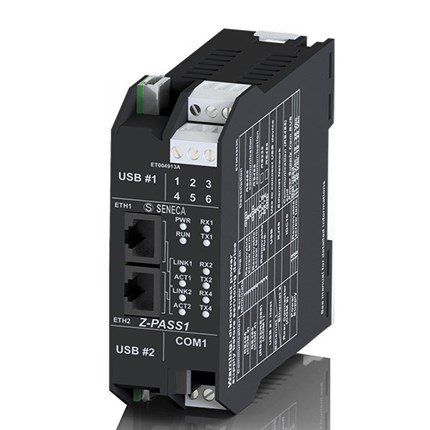

Vpn Industrial Gateway, Serial Device Server With Built-in I/O Z-PASS1

Z-PASS1 is an industrial gateway / serial device server that can handle up to 32 clients. The device has nr.1 digital input for remote connection security interlock, nr.1 digital output for VPN connection online signal. nr.1 digital output for general purpose and nr.1 DI/DO configurable free, Featuring nr.2 Fast Ethernet ports (switch and LAN / WAN mode),nr.1 RS232/RS485 port, nr. 2 RS485 ports and nr. 1 Micro USB host 2.0 port,, Z-PASS1 supports ModBUS TCP server, ModBUS RTU master, ModBUS RTU slave, FTP server, SFTP server, HTTP server, HTTPS server, OpenVPN protocols.

Talk to Our Experts Download Datasheet

  • Industrial Gateway, Serial Device Server, Bridge
  • Supported protocols: ModBUS TCP server, ModBUS RTU master, ModBUS RTU slave, FTP server, SFTP server, HTTP server, HTTPS server
  • Nr.2 Fast Ethernet 10/100Tx ports on RJ45 front connector

  • Nr.1 RS232/RS485 serial port
  • Nr.2 RS485 ports
  • Nr.1 USB host port
  • Security interlock
  • Nr.4 built-in digital I/O
  • Remote Assistance (P2P) and Telecontrol (Single LAN) mode with LET’S platform

  • Power supply : 11-40 Vdc; 19-28 Vac
  • Power consumption : Typical 3 W @ 24Vac, Max 4 W
  • Isolation  : 1500 Vac (power supply // other circuits)
  • Operating temperature : -20 to+65°C
